Commercial site protection across Toronto and the GTA
High visibility
The high-visibility workhorse. Steel pipe finished in safety yellow with reflective banding, used wherever a bollard needs to be seen before it is hit. This is the highest-volume bollard on most warehouse and industrial sites, and the one that gets replaced most often.
Not sure which option fits?
Send a photo of the location and tell us what you are protecting. We will specify it and quote it within 24 hours, including the cheaper option if that is the right one.
Specifications
SBD-RSB4536Y
Product code: SBD-RSB4536Y
The standard height for aisle ends, racking protection and anything a forklift operator needs to see at eye level from a seated position. Domed cap and a red reflective band above the shaft.
| Material | Steel |
|---|---|
| Finish | UV powder-coated yellow |
| Size | 4.5″ × 36″ |
| Base plate | 8″ (203 mm) |
| Hole size | 5/8″ |
| Wall thickness | 1/8″ |
| Reflective tape | Red |
SBD-RSB4542Y
Product code: SBD-RSB4542Y
The common commercial height: tall enough to be seen over a car hood, low enough not to obstruct sightlines. The default choice at store fronts, ramps and building approaches.
| Material | Steel |
|---|---|
| Finish | UV powder-coated yellow |
| Size | 4.5″ × 42″ |
| Base plate | 8″ (203 mm) |
| Hole size | 5/8″ |
| Wall thickness | 1/8″ |
| Reflective tape | Red |
SBD-RSB648Y
Product code: SBD-RSB648Y
The heaviest of the three: a wider 6 inch shaft and 48 inches above grade, for truck yards, dock aprons and anywhere the vehicle likely to hit it is larger than a car.
| Material | Steel |
|---|---|
| Finish | UV powder-coated yellow |
| Size | 6″ × 48″ |
| Base plate | 8″ (203 mm) |
| Hole size | 5/8″ |
| Wall thickness | 1/8″ |
| Reflective tape | Red |
SBD-SSB436Y
Product code: SBD-SSB436Y

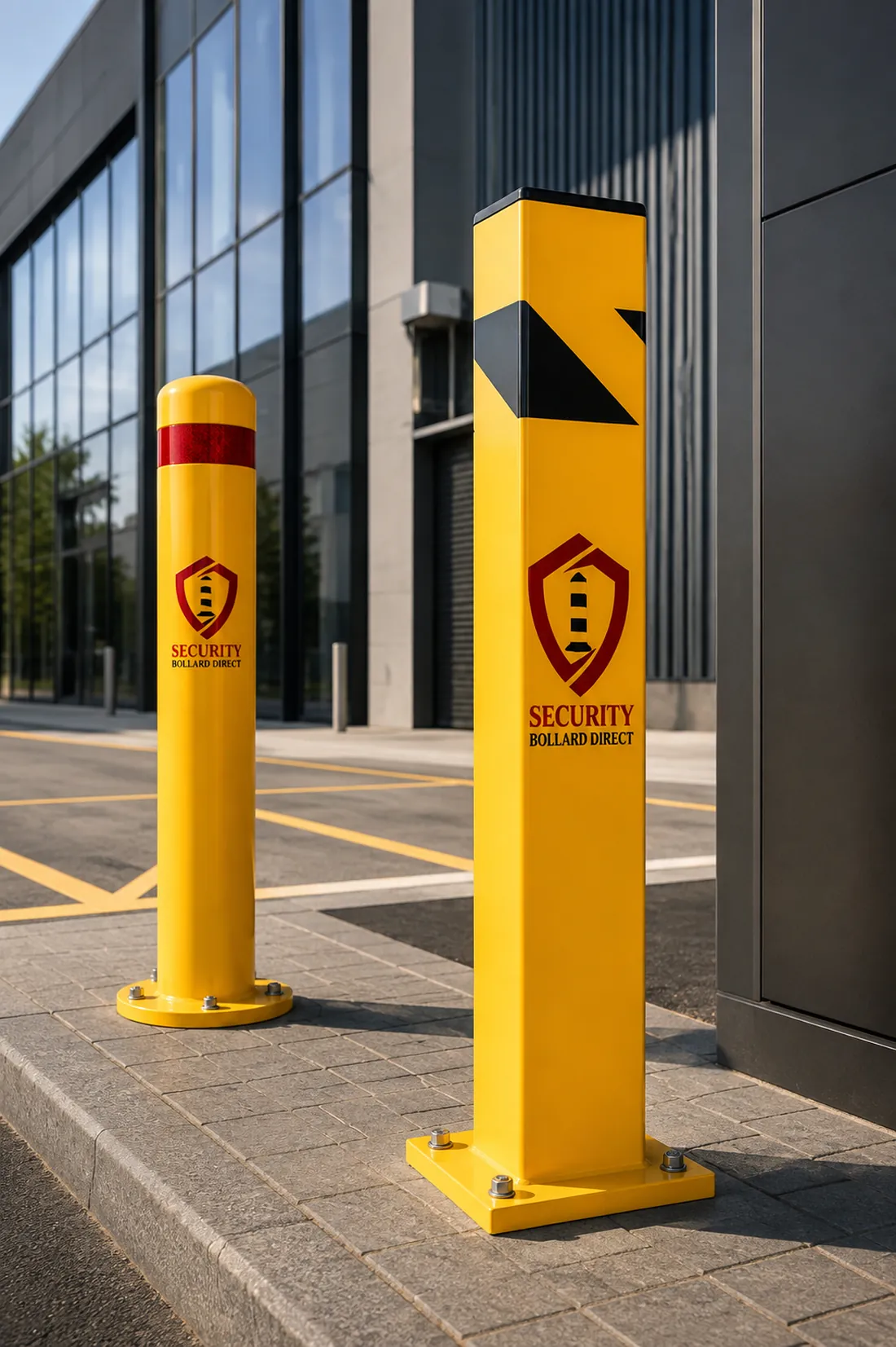

Square section with a black hazard stripe rather than a reflective band. Sits flat against a wall, column or racking upright, which makes it useful where a round post would leave an awkward gap.
| Material | Steel |
|---|---|
| Finish | UV powder-coated yellow |
| Size | 4″ × 36″ |
| Base plate | 8″ (203 mm) |
| Hole size | 5/8″ |
| Wall thickness | 1/8″ |
| Reflective tape | Black |
Before you order
36 inches for inside the building: aisle ends, racking, equipment, where the driver is seated on a forklift. 42 inches outdoors at store fronts, ramps and walkways, which is the common commercial standard. 48 inches where trucks rather than cars are the risk. If you are unsure, send a photo of the location and we will specify it.
Round for open positions and anywhere the bollard is seen from all sides. Square where the post sits against a wall, a column or a racking upright, because the flat face closes the gap a round shaft leaves. Both take the same anchors.
All four mount on an 8 inch base plate with 5/8 inch holes, anchored to concrete. The concrete needs to be sound and thick enough to hold the anchors. Asphalt and pavers usually need a different approach. Send a photo of the surface if you are not sure.
Be careful with this question. These are protective and deterrent bollards for the applications described here. They are not crash-rated. If your project requires certified anti-ram performance to ASTM F2656 or IWA 14-1, we will say so and refer you to a rated manufacturer.
Usually not. A bollard cover slides over the existing post and restores high-visibility colour in minutes without a crew or a repaint. Replace the post when it is bent or rusted through, not when it has just lost its colour.
Tell us what you are protecting and from what. We will come back with a part number, a price and a date.
