In Toronto, bicycle parking is a code requirement rather than an amenity. Chapter 230 of Zoning By-law 569-2013 sets bicycle parking rates, short-term spaces must be visible and publicly accessible at grade, and the Toronto Green Standard applies to new mid-to-high-rise residential and all ICI development. If you are filing a Site Plan Approval application, there is a bike rack line item in your project.

Where it is used

New ICI and mid/high-rise development under Site Plan Approval
Condominium visitor and resident short-term bicycle parking
Commercial plazas, offices and campus frontages
Streetscape and BIA improvements
Schools, community centres and transit-adjacent sites
Replacing informal parking where bikes are locked to railings and accessibility posts

Not sure which option fits?

Send a photo of the location and tell us what you are protecting. We will specify it and quote it within 24 hours, including the cheaper option if that is the right one.

Send a photo

Specifications

Options and technical data

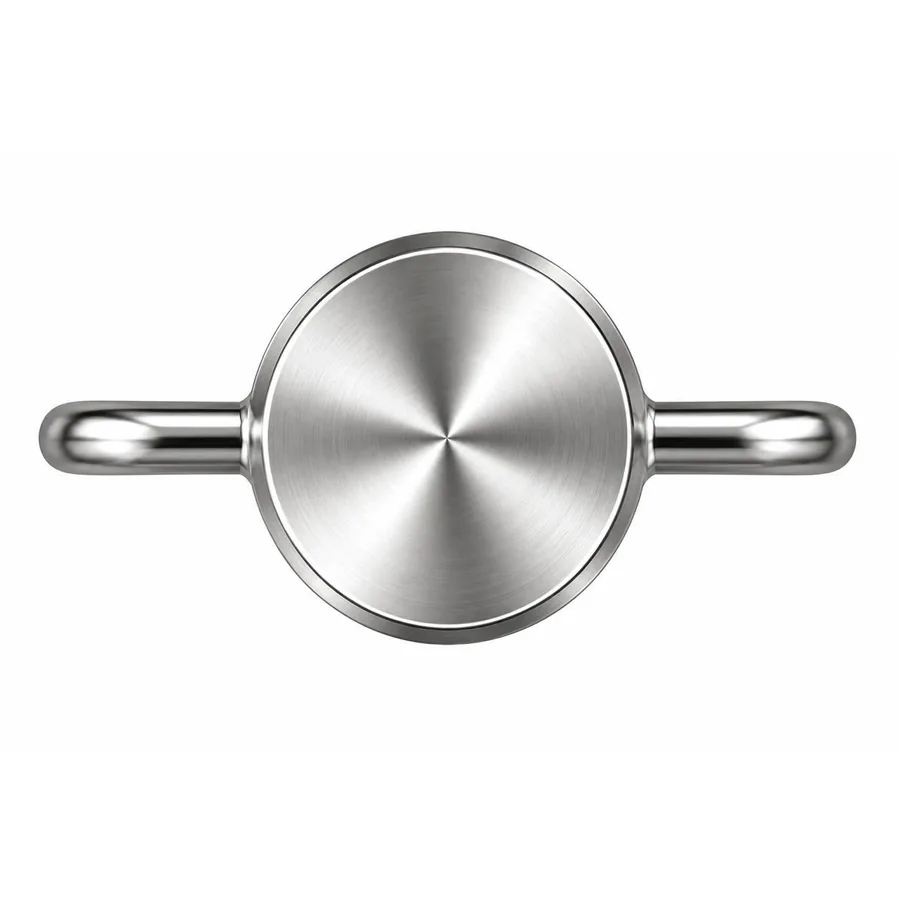

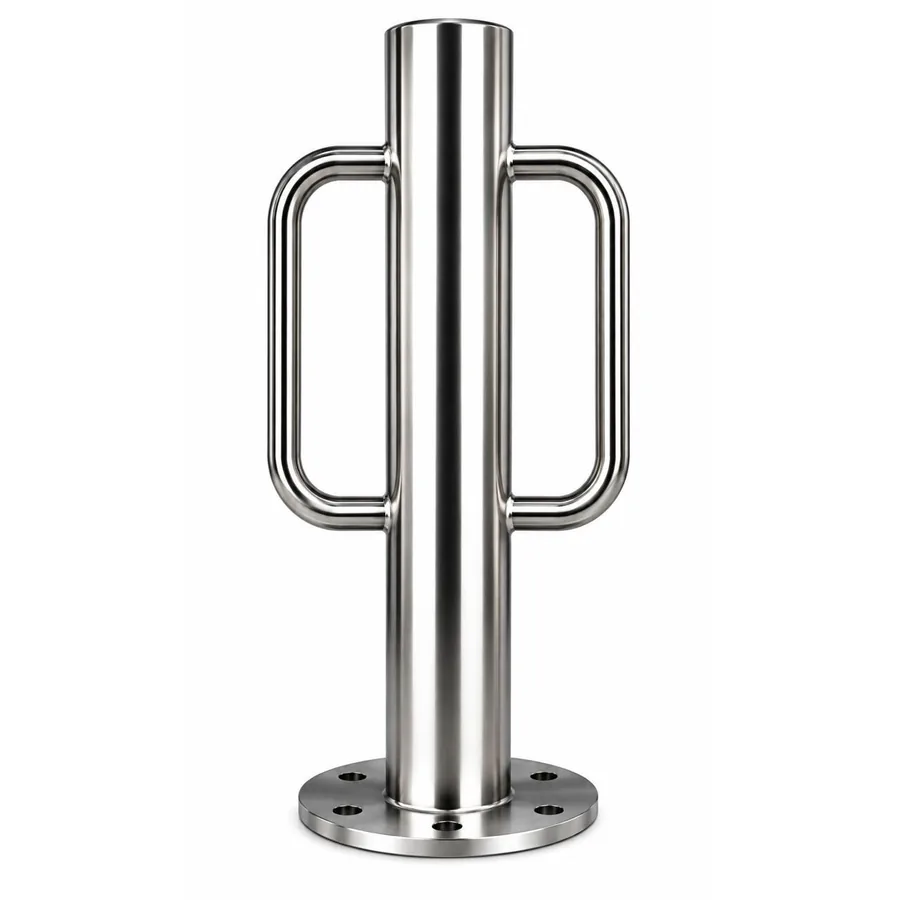

SBD-SSBR01

Product code: SBD-SSBR01

Stainless Steel Bike Rack

Built for durability, security and style. Integrated side loops give U-lock compatibility at two heights, and the heavy-duty 12-inch base plate provides exceptional stability. Specified for urban streets, parks, schools, businesses and public spaces where finish quality is part of the design intent.

Round base plate with four pre-drilled mounting holes for secure surface installation. Corrosion-resistant through Ontario winters.

Overall height	42 in
Loop height	23 in
Overall width	33.46 in
Tube diameter	1.89 in
Base diameter	12 in
Mounting holes	4 × Ø1/2 in
Surface	Stainless steel
Capacity	1 to 2 bikes

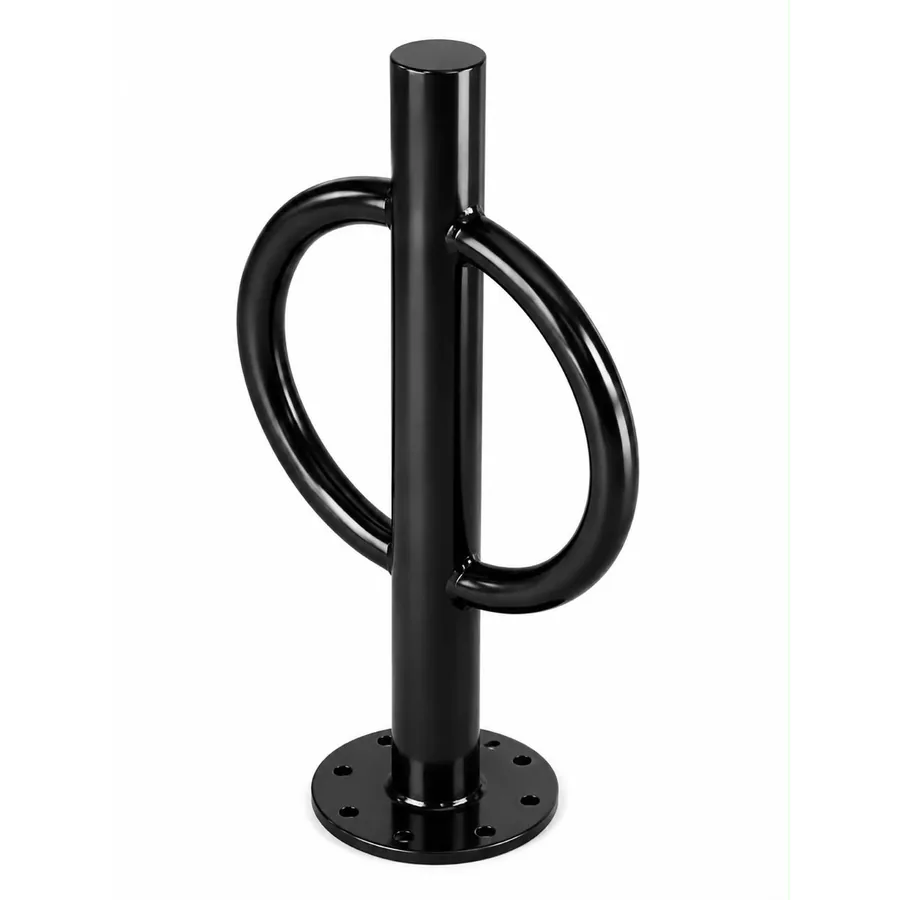

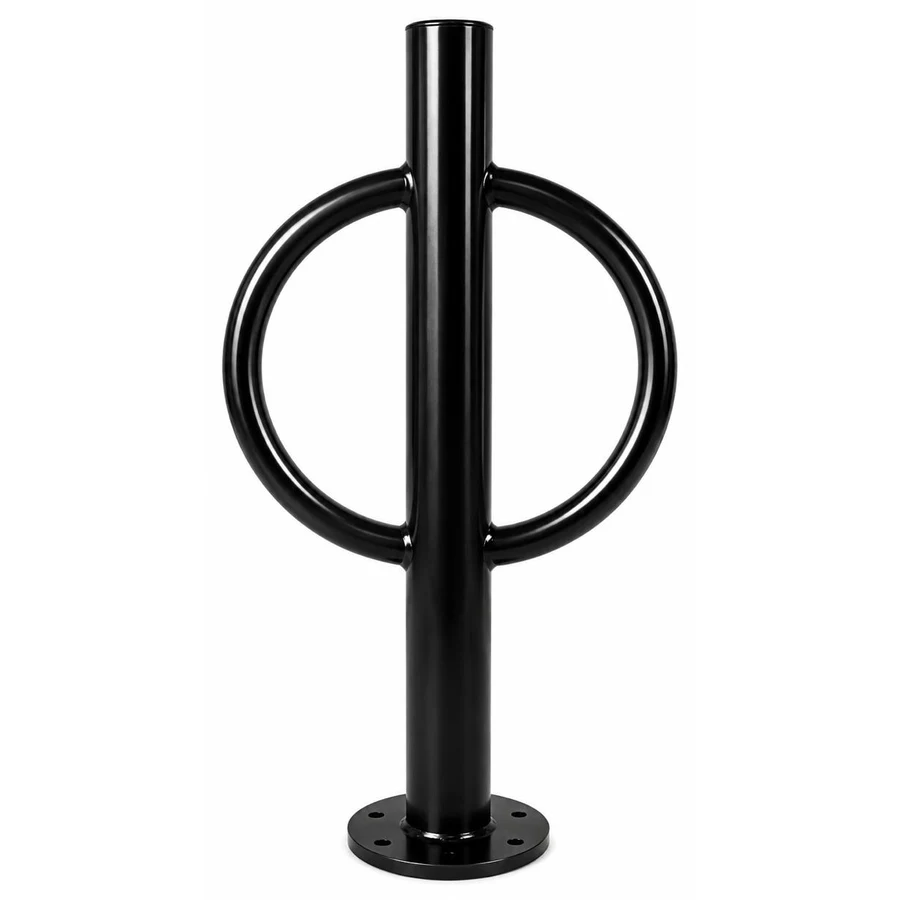

SBD-BRBM01

Product code: SBD-BRBM01

Double Moon Bike Rack Bollard

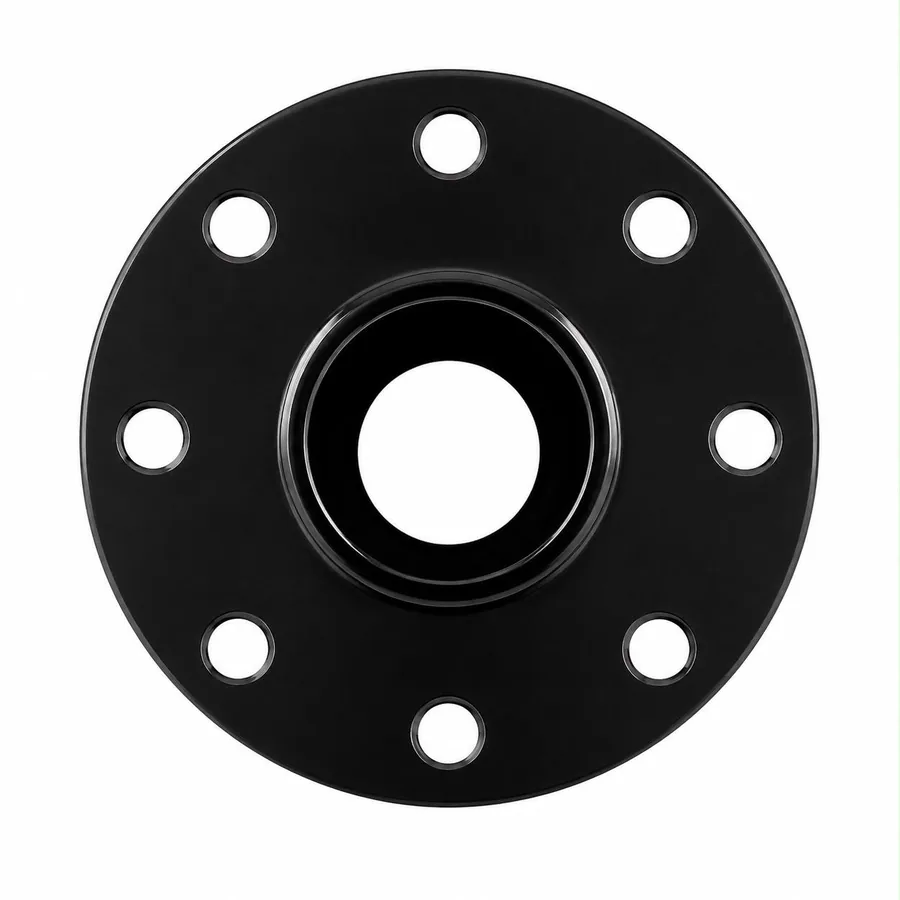

A bollard and a bike rack in one footprint. The circular locking loops park two bicycles while the post itself works as vehicle access control, useful where a site needs both jobs done in a tight frontage. Assembles on site and mounts to a compact 120 mm base plate.

Also available in-ground for installation into a concrete footing where the site allows.

Post size	60 mm
Height	853 mm
Width	338 mm
Base plate	120 mm
Mounting style	Surface mount
Finish	Powder-coated black
Capacity	2 bikes

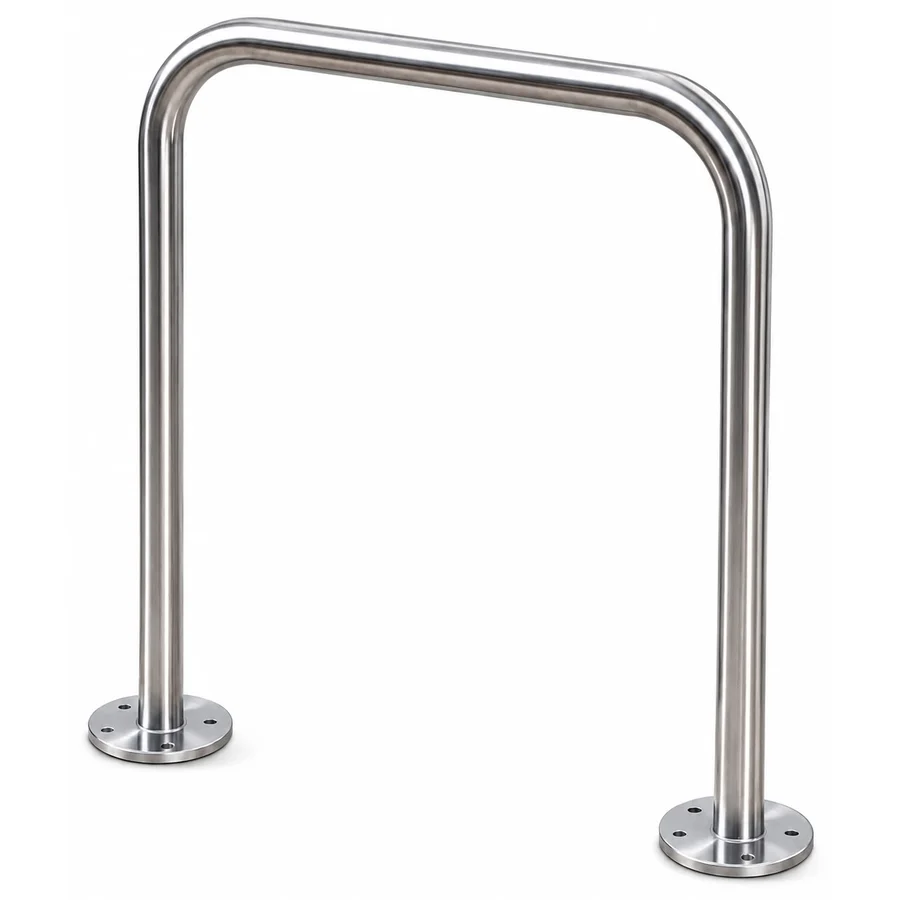

SBD-UBR31601

Product code: SBD-UBR31601

Stainless Steel U Bike Rack

The minimalist U-shape in Grade 316 stainless: the highest corrosion resistance in the range, suited to heavy de-icing salt exposure. Two points of contact and U-lock capability in a clean form that blends into sidewalks, parks, campuses and commercial frontages.

Grade 316 is the specification to reach for where road salt is heavy: garage entries, transit-adjacent sites and exposed frontages.

Width	33.46 in
Height	31.5 in
Tube diameter	1.89 in
Material	Stainless Steel 316
Capacity	1 to 2 bikes
Mounting	Surface mount (bolted)

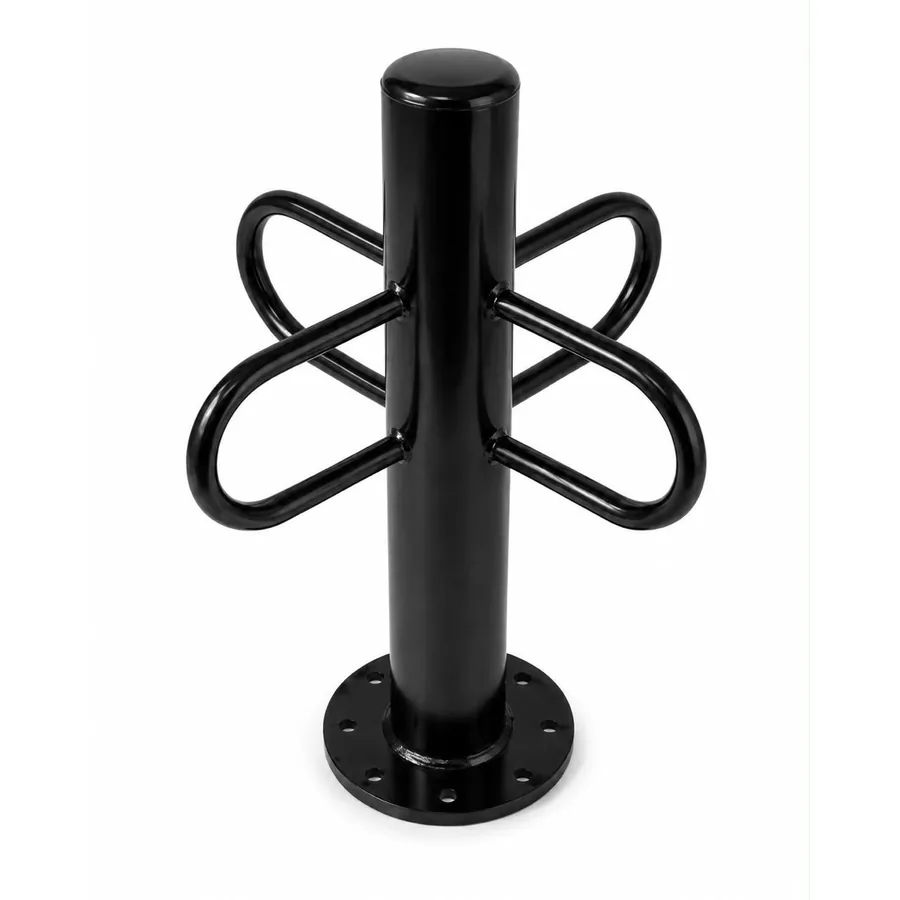

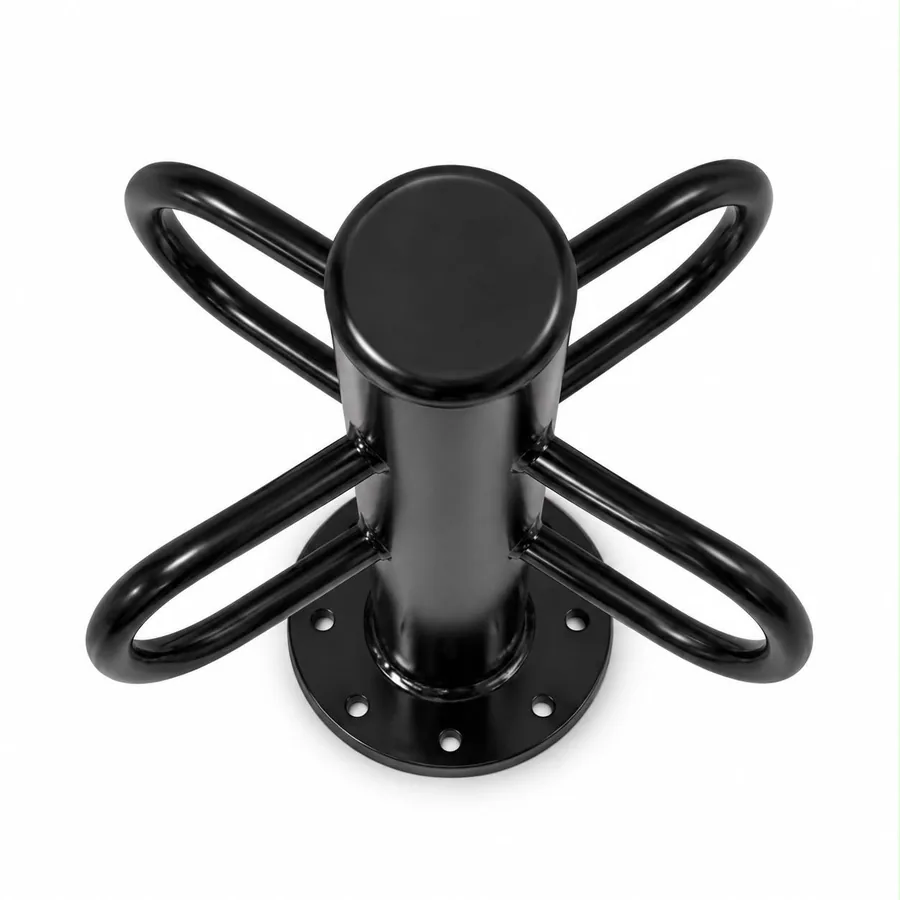

SBD-CBS4W01

Product code: SBD-CBS4W01

4-Way Bike Rack

The highest-capacity unit in the range: four U-shaped locking tubes around a heavy central post park up to eight bicycles in a single compact footprint. The efficient answer where a site plan calls for numbers, not just presence.

One 4-Way replaces a row of four hoops, worth pricing against multiple single racks when space is tight.

Overall height	35.25 in
Overall width	28.25 in
Post diameter	4.5 in
U-shaped tubes	1.5 in diameter
Bike capacity	Up to 8 bikes
Finish	Powder-coated black

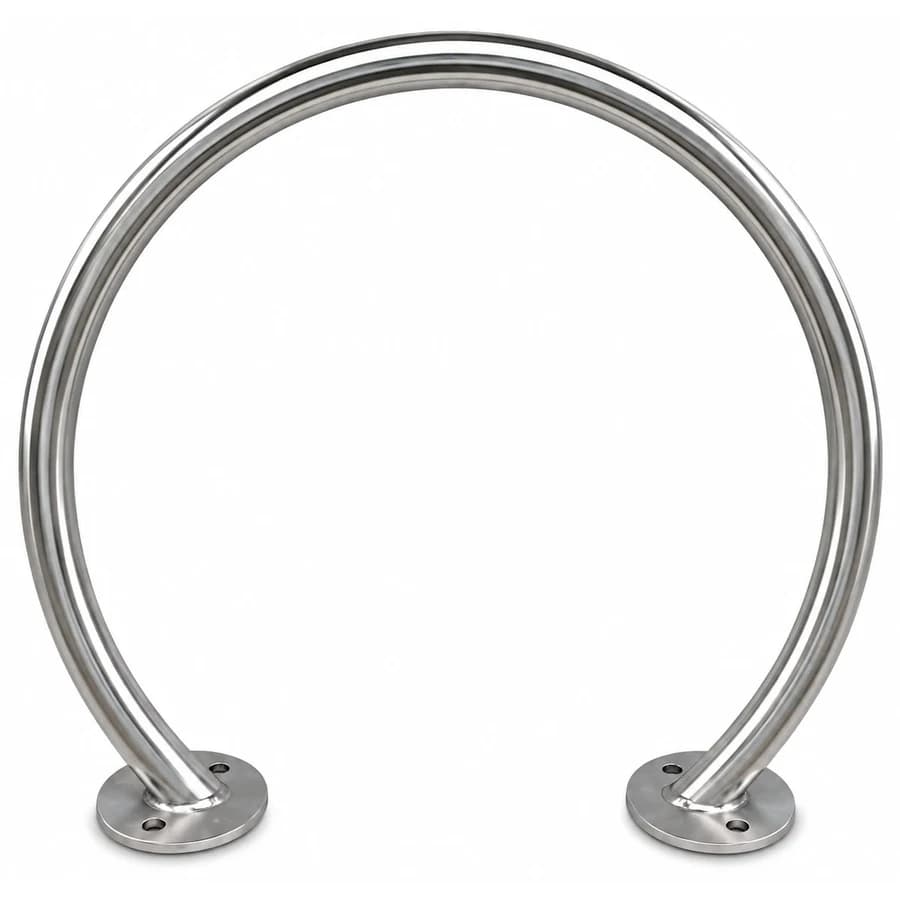

SBD-UBRSS01

Product code: SBD-UBRSS01

Round Bike Rack

Simple, sturdy and secure. The classic hoop offers the two points of contact and U-lock capability cyclists trust, with clean lines and all-steel construction that sits comfortably in architectural and landscape designs.

Hot-dip galvanizing gives long service life against road salt. Polished stainless available on request for design-led frontages.

Width	33.46 in
Height	31.5 in
Tube diameter	1.89 in
Surface	Hot-dip galvanized (HDG)

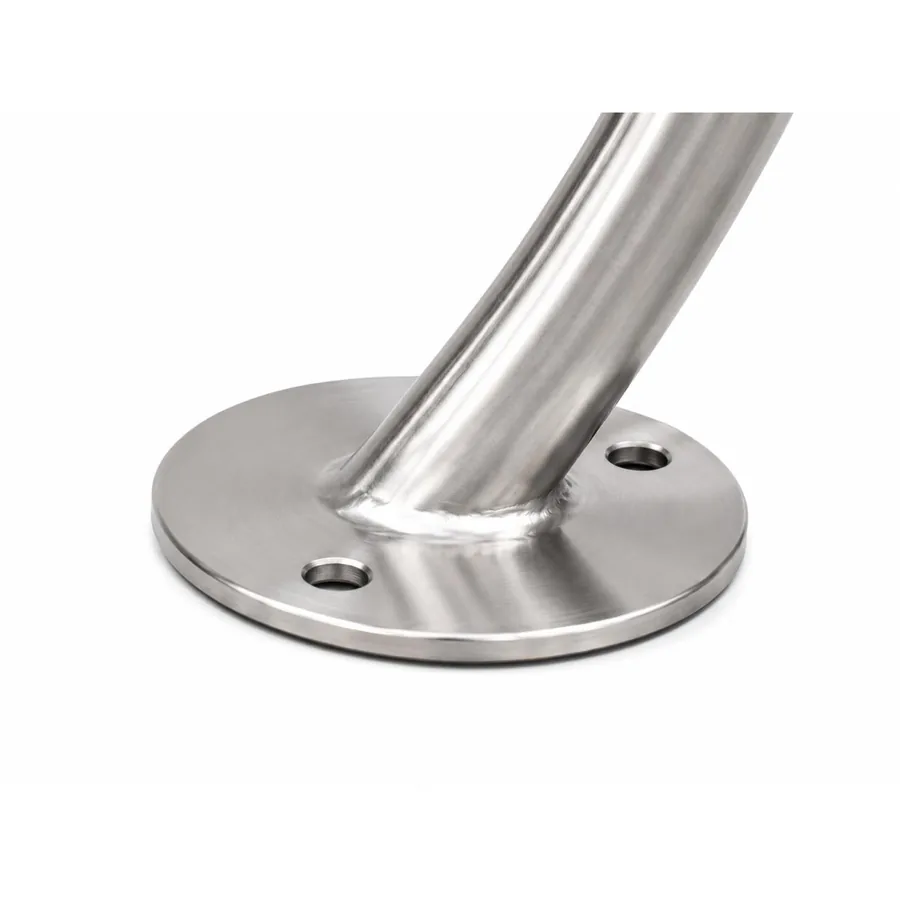

Mounting	Surface mount, flanged base plates
Capacity	1 to 2 bikes

Before you order

Choosing the right option

How many racks does my project need?

It depends on the use, the gross floor area and the zone under Chapter 230. Short-term spaces must be located within 30 metres of a pedestrian entrance to the principal building and be publicly accessible at grade. Send us the drawing or the SPA submission and we will help you count.

Galvanized or stainless?

Hot-dip galvanized is the value choice and performs well through Ontario winters, it is what most ICI and streetscape projects use. Stainless is specified where the rack is a visible part of the design at a building entrance or high-end frontage. The Round rack (SBD-UBRSS01) is HDG; the SBD-SSBR01 is stainless, and the U rack (SBD-UBR31601) is Grade 316 stainless for heavy salt exposure.

What about AODA clearances?

Rack placement has to respect clear path-of-travel widths and not create a projection hazard. This is a layout question more than a product question, and it is worth resolving on the drawing rather than on site. We can advise on spacing and setback.

Can you provide submittal documentation?

Yes. Dimensional data, materials and mounting details are on our spec sheets. Tell us what the specification calls for and we will confirm compliance and lead time in writing.
